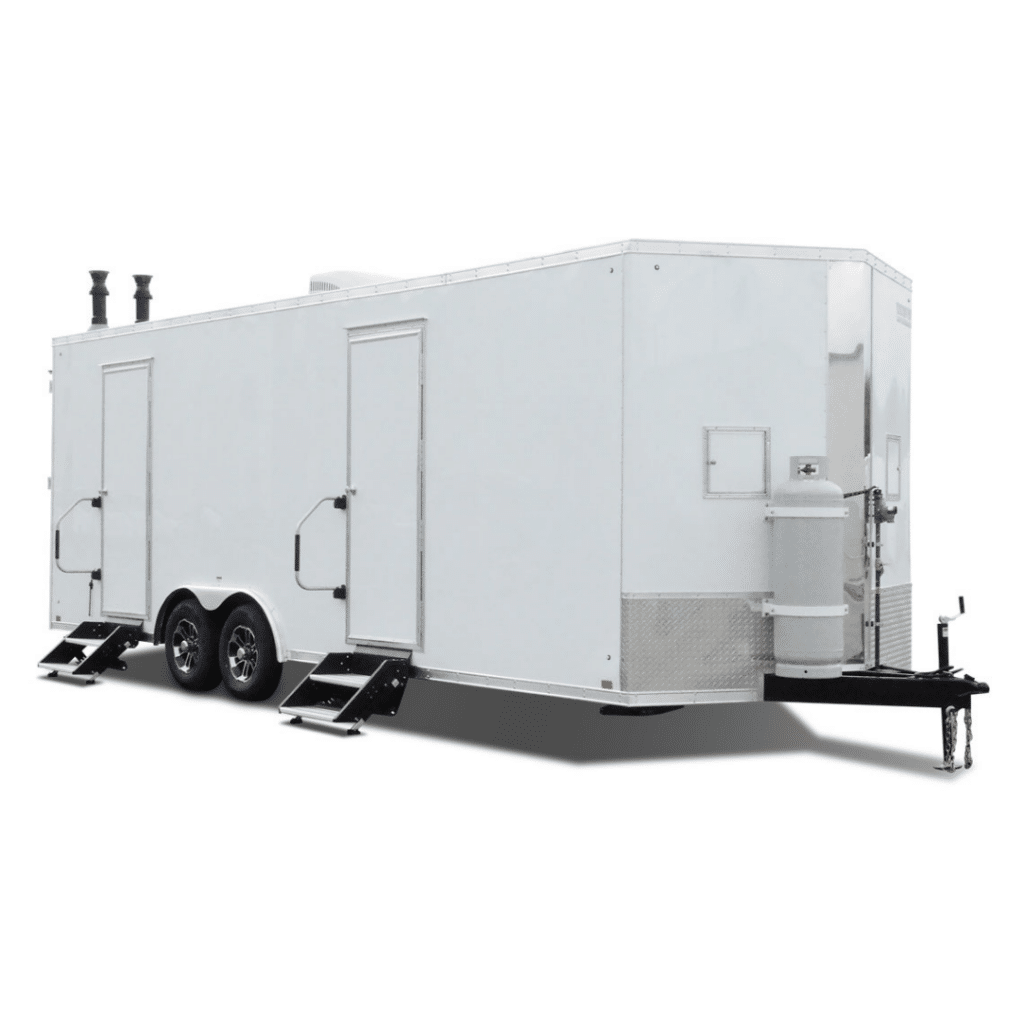

8 Station Laundry Trailer
This spacious 8 station laundry trailer is built to accommodate large groups of service workers and people in disaster relief situations. Eight Samsung Stackable washer/dryer units, two folding stations and one laundry sink outfit the trailer. The open floor plan allows for people to flow easily in and out of the trailer, maximizing the amount of productivity.
Laundry Trailer, 8-Station Specifications
Features
Interior
Chassis
HVAC
Electrical
Plumbing
Laundry Trailer, 8-Station Specifications
- No. of Stations: 8
- Length | w/Tongue: 24′ | 31′
- Width | w/ Steps Down: 8′ | 10′ 6″
- Ride Height w/ Stacks: 11’8″
- Freshwater: Freshwater Connection
- Wastewater Wastewater Connection
- Axle: (2) 7,000 lbs Torsion
- Wheels: 16″ Aluminum
Features
- Heating and air conditioning
- Hot and cold running water
- Simulated wood flooring
- Ducted air conditioning with heat strip
- On-board water capacity for remote locations where water is not available
- Arctic package for cold weather applications
Interior
- Entry Doors, White Interior – 80×32 RH
- Aluminum Trim White Pebbled Walls
- Smooth Fiberglass Ceiling Surface
- Black Rubber flooring, Seamless
- Built in Cabinet SB C-Top – Blk Plastic

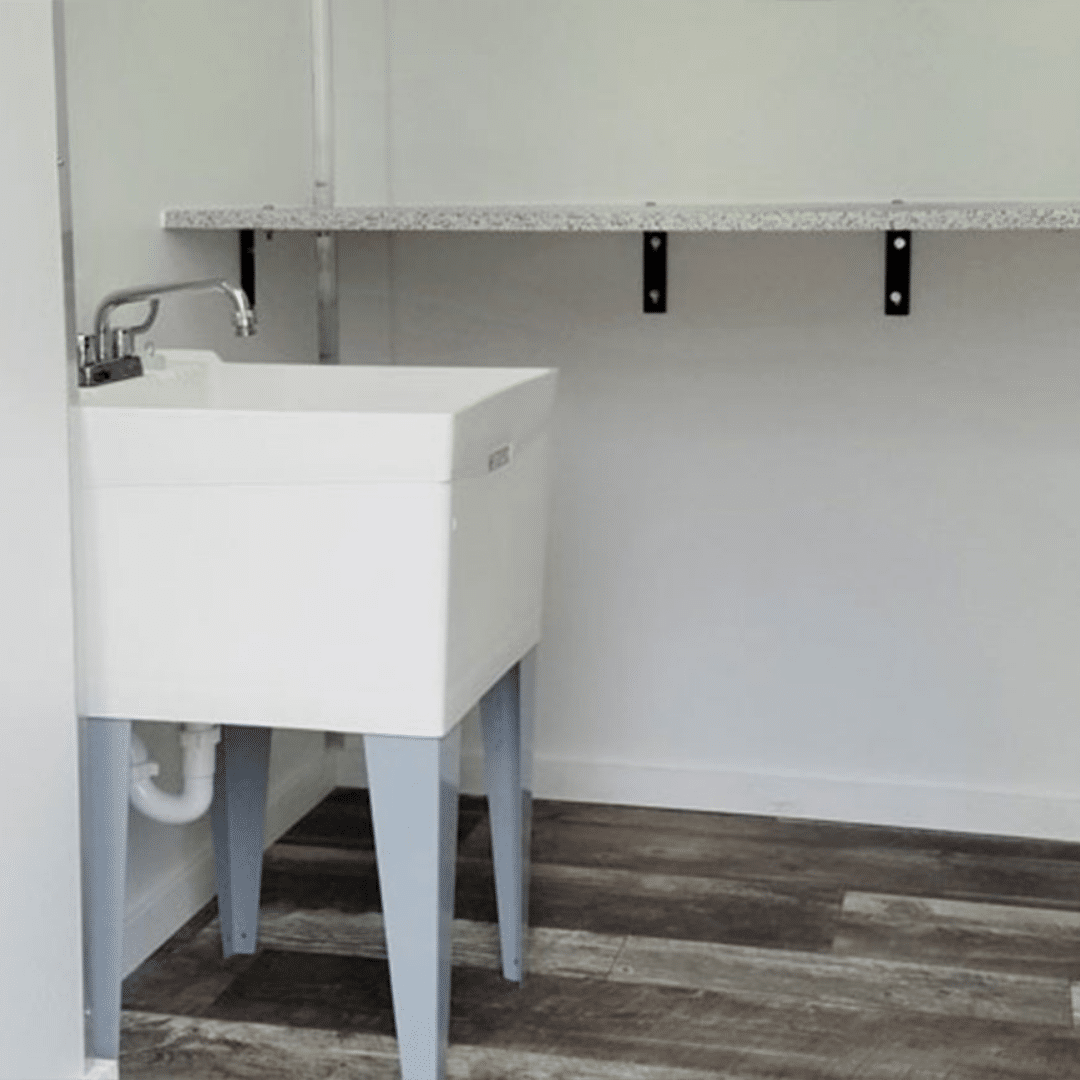

- Double Basin Utility Sink, w/ Goose Neck Faucet
- 5lbs Fire Extinguisher
- Smoke/CO2 Detector Hardwired 110v
- Low Consumption Washers and propane dryers
Chassis
- 24′ H/D Undercoated Frame
- 2-5/16″ Hitch
- 7,000# Torsion Axle w/ Elec Brakes, EZ Lube
- 1100 Gallon Waste tank
- 16″ Radial Tires & 8 Hole Steel Wheels LRG
- Stabilizing Jacks, Sidewinders
- JAG Exclusive Catridge Step Assemblies 48″
- H/D Front Jack
HVAC
- 12Volt Vent Fan Package (3)
- 13,500btu A/C, Non Ducted, No Heat Strip
Electrical
- 7 Pin Plug, Break Away Protection
- Converter w/ Charge Protection – 30 amp
- Full Size Deep Cell Battery, Group 24
- Direct Charge Battery DOT Safety & LED Marker Light Package
- LED Interior Lighting Pkg Exterior Porch Light @ Each Door – LED
- LED Light Above Service Door, Oblong
- 6-30 Amp, 110v gfi outlets OR 3-50 amp RV 4 prong connection (depends on manufacturer)
Plumbing
- Propane Tanks w/ LP Detectors – Tanks Mounted
- 199,000 BTU propane water heaters
- Inlet Pressure Regulator, Brass, 40-60 psi
- City Water Fill, 3/4″ Garden Hose Connection
- Water Lines Inside Trailer, Weather Protected
- Floor Drains, Chrome
- Water source cannot be further than 100ft away from trailer
